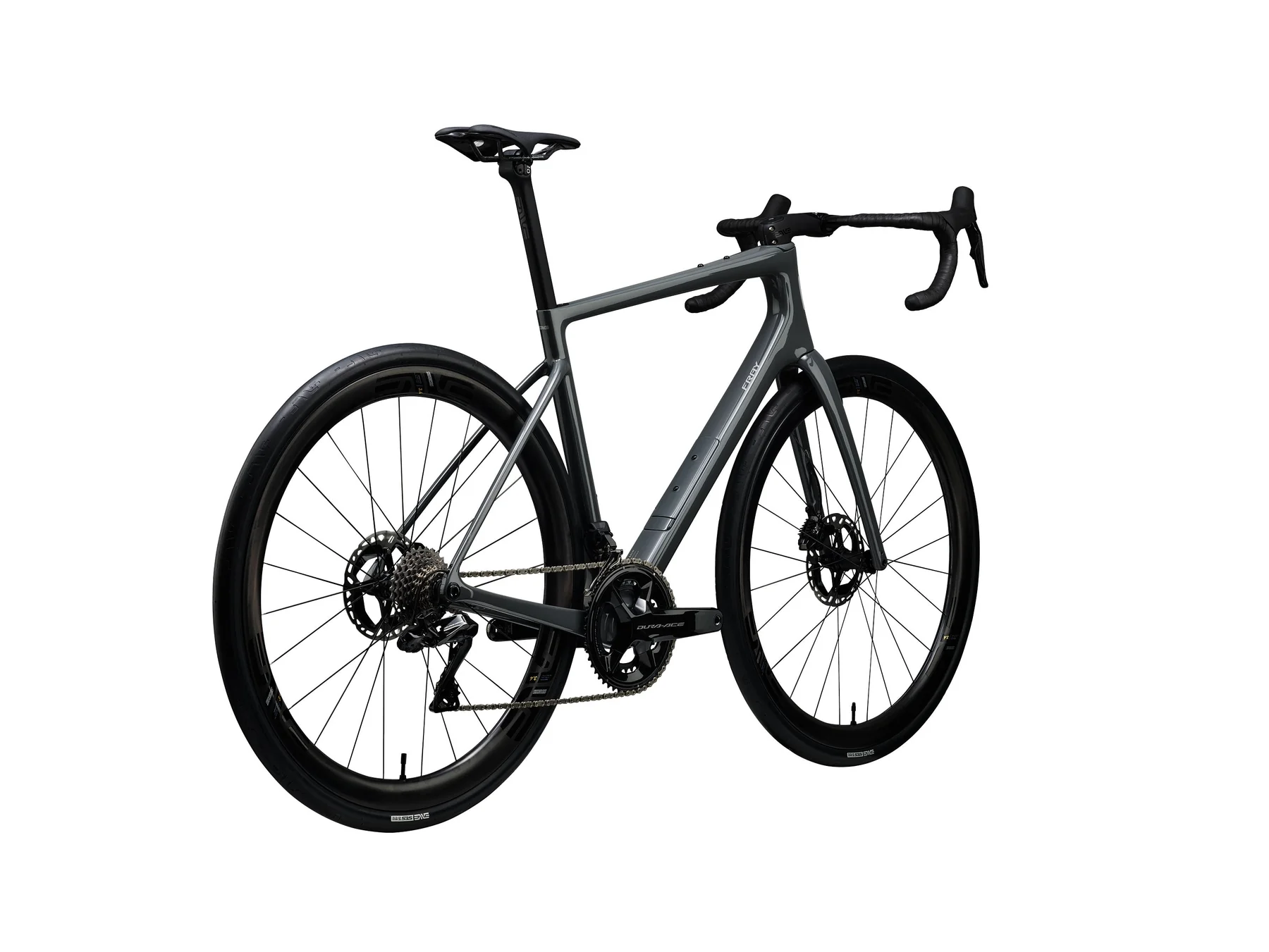

ENVE FRAY- Shimano Ultegra Di2 – SES 4.5
11.900,00 €
Fray
An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the Fray as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.
For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
| Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43 |
| Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, |
| 56cm/47, 58cm/47, 60cm/43 | |
| Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 27mm |
| Optimal Tire Size | 31mm - 35mm |
| Maximum Listed Tire Clearance 1x | 40mm |
| Maximum Listed Tire Clearance 2x | 38mm |
| In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
| Frame Routing | Internal |
| Waterbottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Compatible | Yes |
| Wheel Size | 700c |
Additional information
| SIZE | S, M, L, XL |
|---|
