Sale!

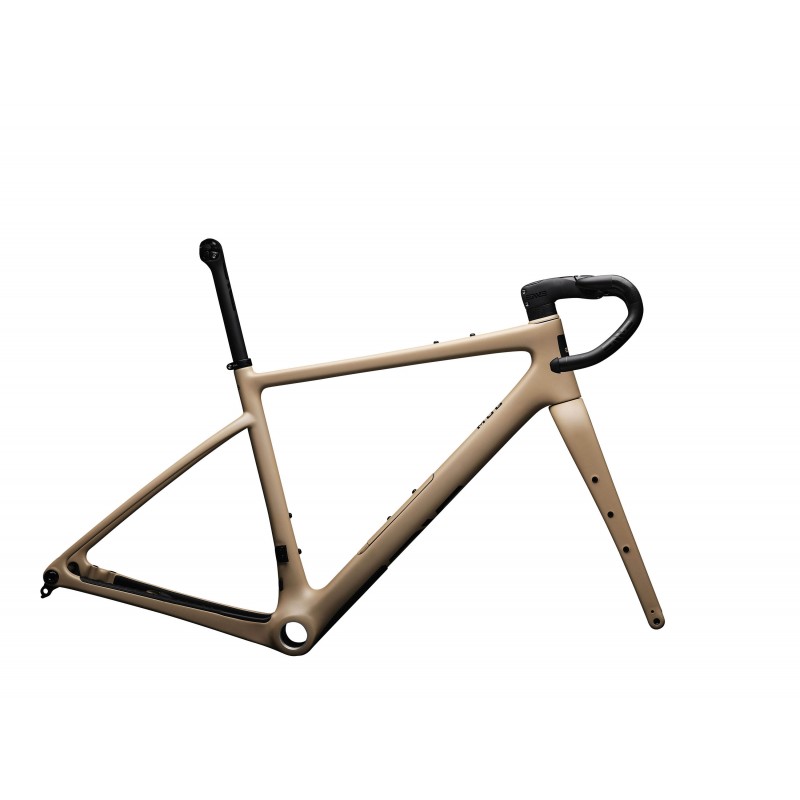

ENVE MOG Frameset 49 and 60cm only

Original price was: 11.900,00 €.Current price is: 3.800,00 €.

SKU: N/A Category: FRAMESETS Tags: ENVE FRAY, Hamburg

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
Frame Size/Fork Rake	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c
