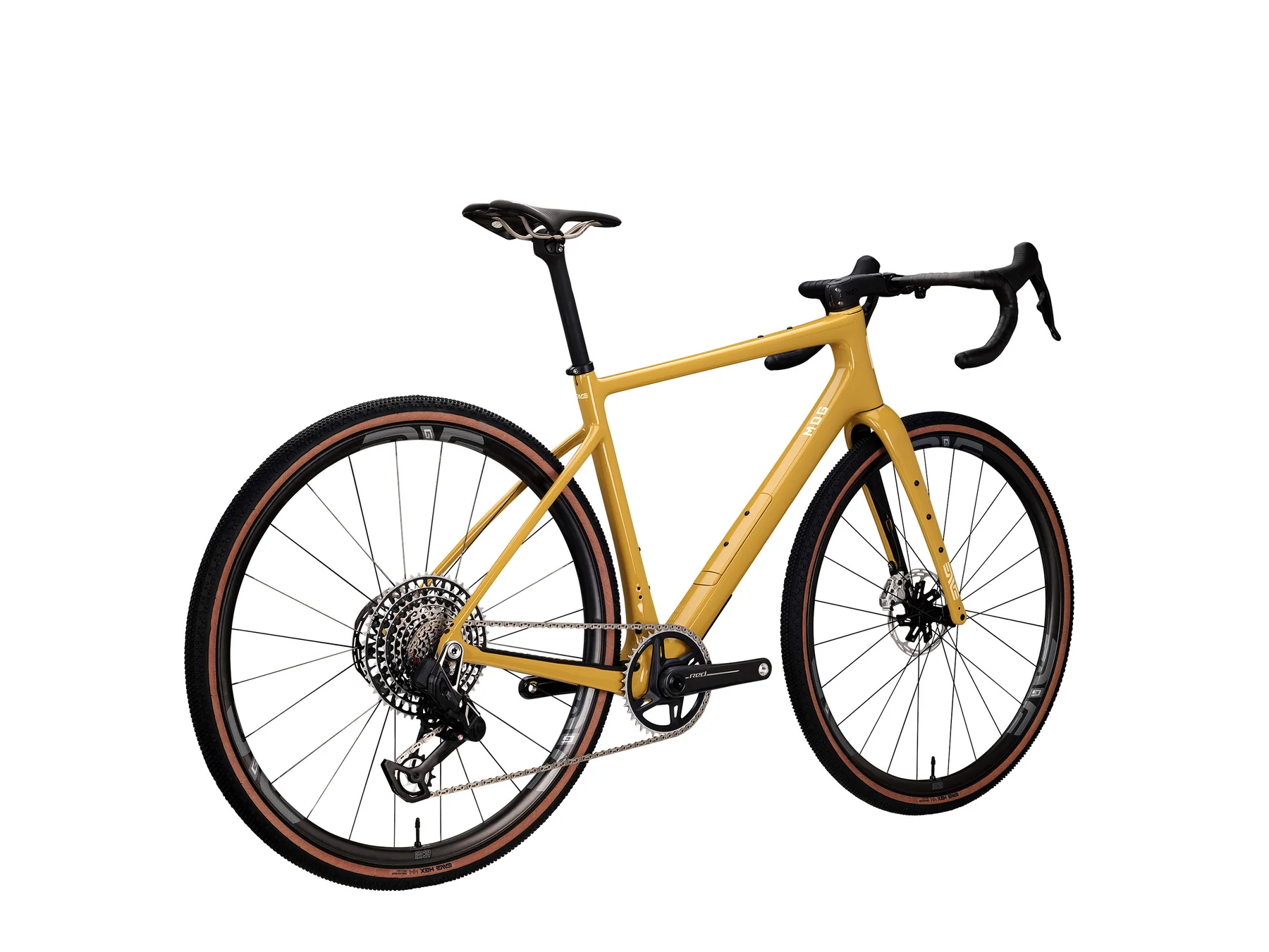

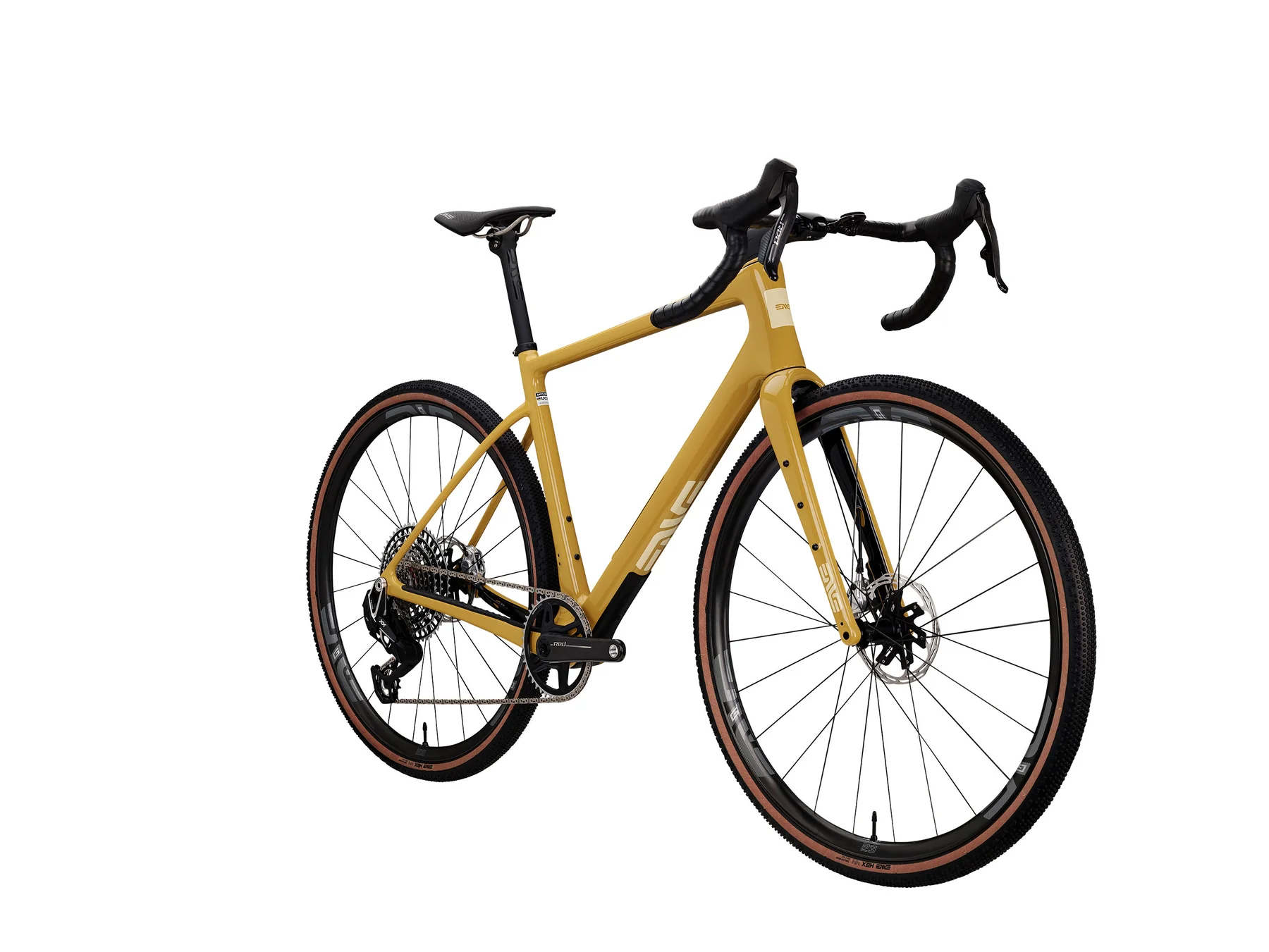

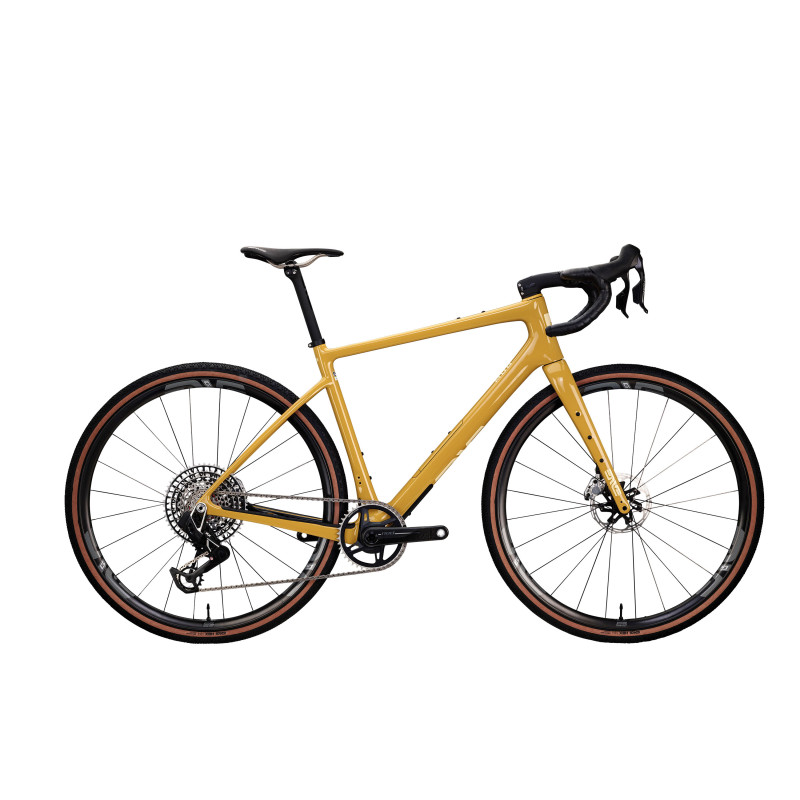

ENVE MOG – Sram RED XPLR
7.499,00 €
MOG
An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the MOG as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.
For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible |
| Target Application | Gravel Racing/Riding/Exploration/Adventure |
| Sizes (cm) | 49, 52, 54, 56, 58, 60 |
| Fork Rake | 57, 55, 53 |
| Fork Axle to Crown | 395mm |
| Frame Size/Fork Rake | 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53 |
| Frame Weight | 950g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5" IS52 Upper and Lower |
| Seat Post Diameter | 27.2 |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Brake Rotor Compatibility | F: 160/180, R: 140/160 (Adapters Required) |
| Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 700 x 36c |
| Optimal Tire Size | 700 x 40c-44c |
| Maximum Listed Tire Clearance | 700 x 50c |
| Frame Routing | ENVE IN-Route Internal |
| Water Bottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Mount Compatible | Yes |
| Wheel Size | 700C (650b Not Recommended) |
| Color | Pantone 7528C (Equivalent to Sand) |
Additional information
| SIZE | S, M, L, XL |
|---|
