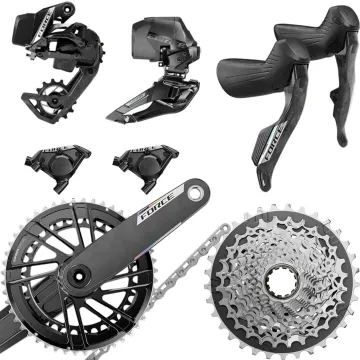

SRAM FORCE E1 AXS

The SRAM Force E1 XPLR Wide Carbon AXS 13-speed groupset offers precise, wireless shifting and powerful, one-finger brake control – optimized for gravel. With a new ergonomic grip body shape, bonus buttons, stiff brake calipers and robust 1x shifting logic, it ensures maximum comfort, control and durability on any terrain.

Scope of delivery – SRAM Force E1 XPLR Wide Carbon AXS 13-speed groupset

• 2 x Force eTap® AXS E1 HRD shift/brake lever FM disc brake
• 1 x Force XPLR E1 DUB WIDE 1×13-speed carbon crankset 42T
• 1 x Force XPLR AXS E1 13-speed rear derailleur
• 1 x Force XPLR XG-1371 13-speed cassette 10-46
• 2 x Paceline Rounded CenterLock brake rotor 160 mm
• 1 x Force E1 Flattop 12-speed chain 126 links
• 1 x eTap / AXS battery unit
• 1 x eTap / AXS charger

SRAM Force eTap® AXS E1 HRD shift/brake lever FM disc brake

Completely new grip body ergonomics – now also for the Force. The system features stiffer brake calipers, the ability to brake with just one finger from the lower and upper link position, bonus buttons and a texture that makes it easier to find and operate the buttons and levers. These improvements come from over four years of feedback from a wide range of riders and provide a new level of comfort and control for an even wider range of riders. It also makes it almost impossible to pinch your fingers when braking hard. Less effort, less hand fatigue, more effortless operation and more control.

Features

• Braking with just one finger – whether from the top grip or in the sprint position
• AXS-capable for easy setup, quick personalization and high reliability eTap shifting logic for intuitive shifting
• Bonus button enables control of ANT+ devices or an additional option for shifting
• Optimized shape of the grip body fits a wide range of hand sizes
• Carbon brake lever for low weight
• Textured paddle shifters and rubber grips for more control and comfort
• Bleeding Edge technology for easy and clean bleeding
• Grip width adjustment for personalization for different hand sizes

Product features

• Application: Road bike
• Model: Force eTap AXS
• Grip width adjustment: Yes
• Brake type: Hydraulic brake system (disc brake)
• Brake caliper: 2-piston
• Brake caliper mount: Flat mount 20 mm offset
• Front gear steps: 1/2-speed
• Rear gear steps: 12-/13-speed
• Recommended brake disk type: 2-piece Paceline

Mounting / cable length

• right – rear / 1800 mm
• left – front / 950 mm

Brake lever material

• Brake lever: Carbon
• Shift lever: Plastic
• Brake pads: Steel-backed organic
